Simple Cabling/Wiring Guides; "OnDemand" unit

Asger Andersen
Asger Andersen
  • Updated

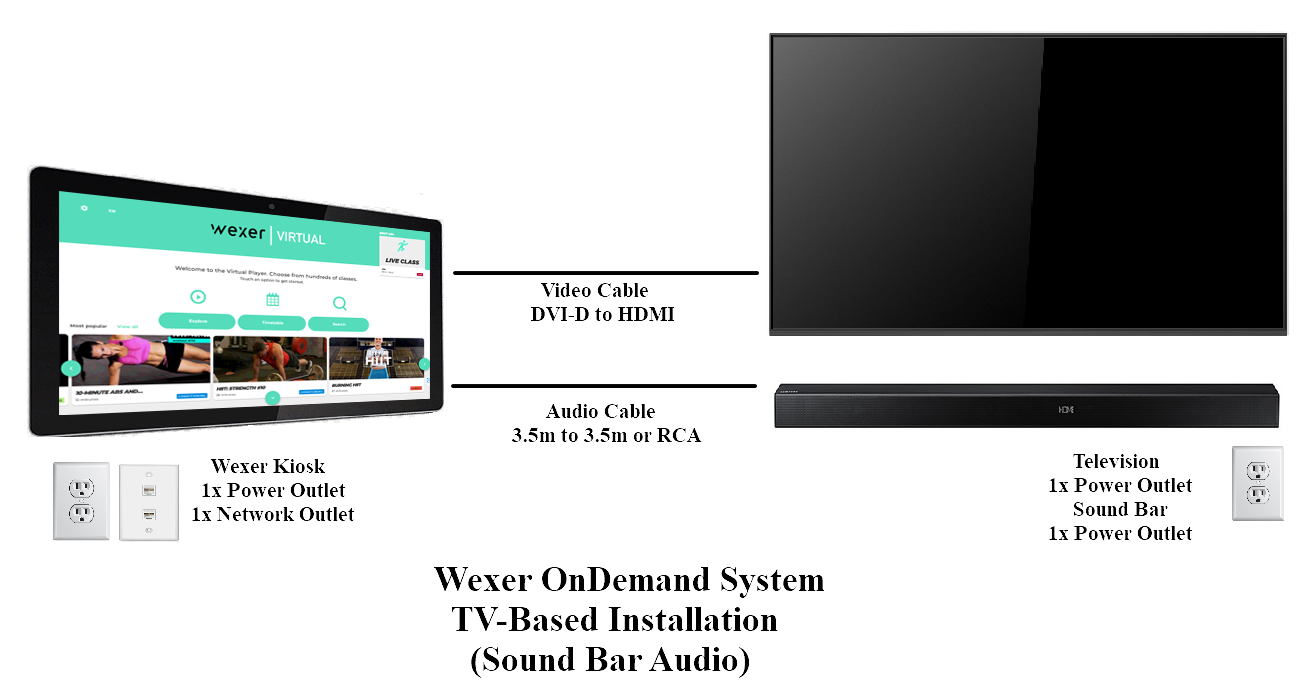

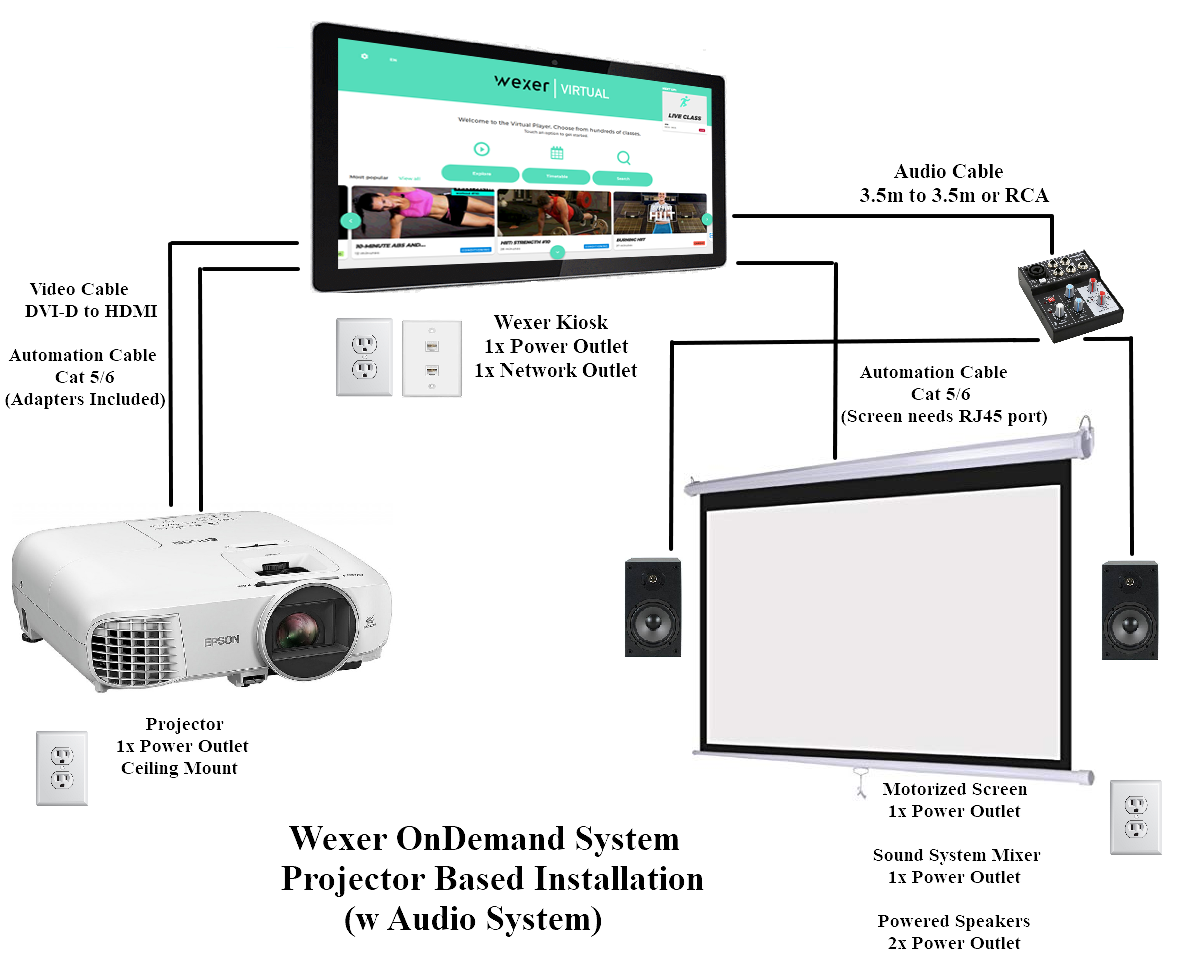

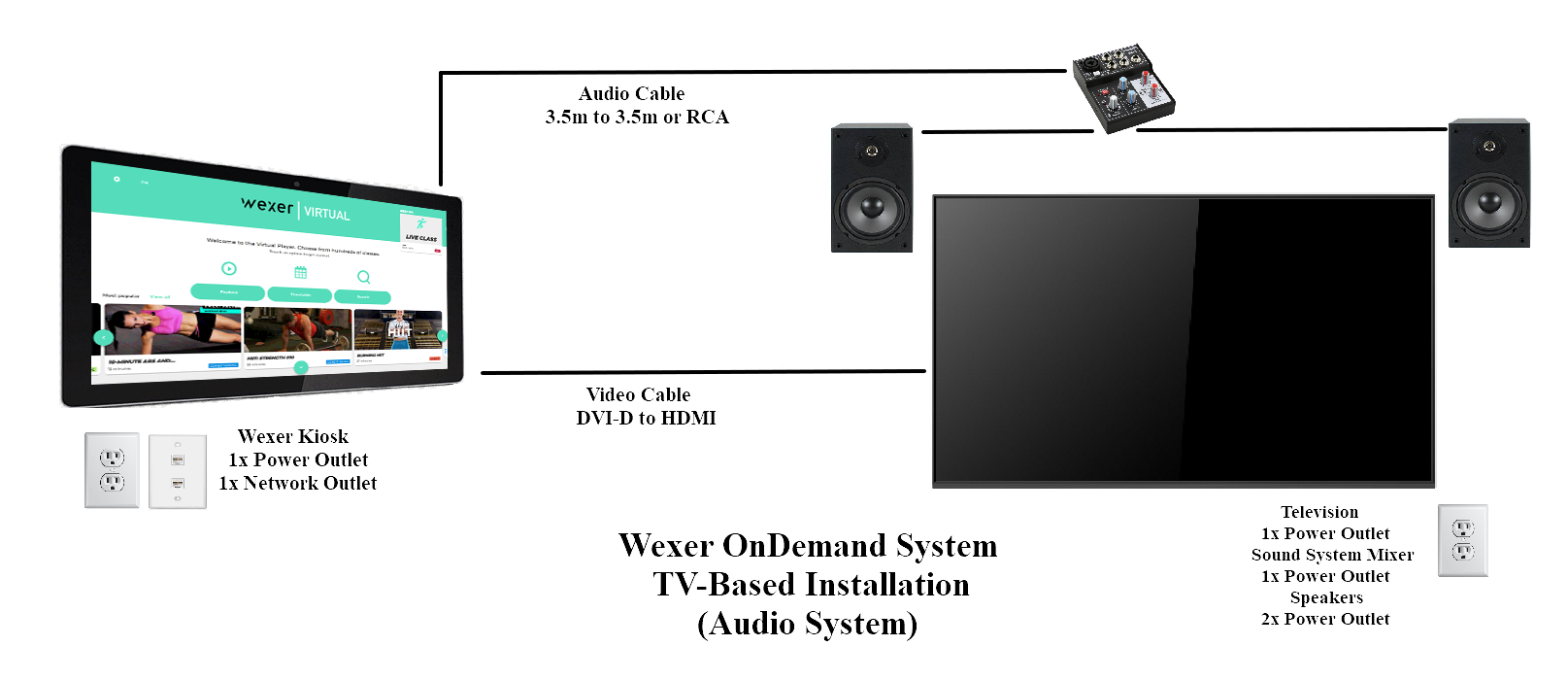

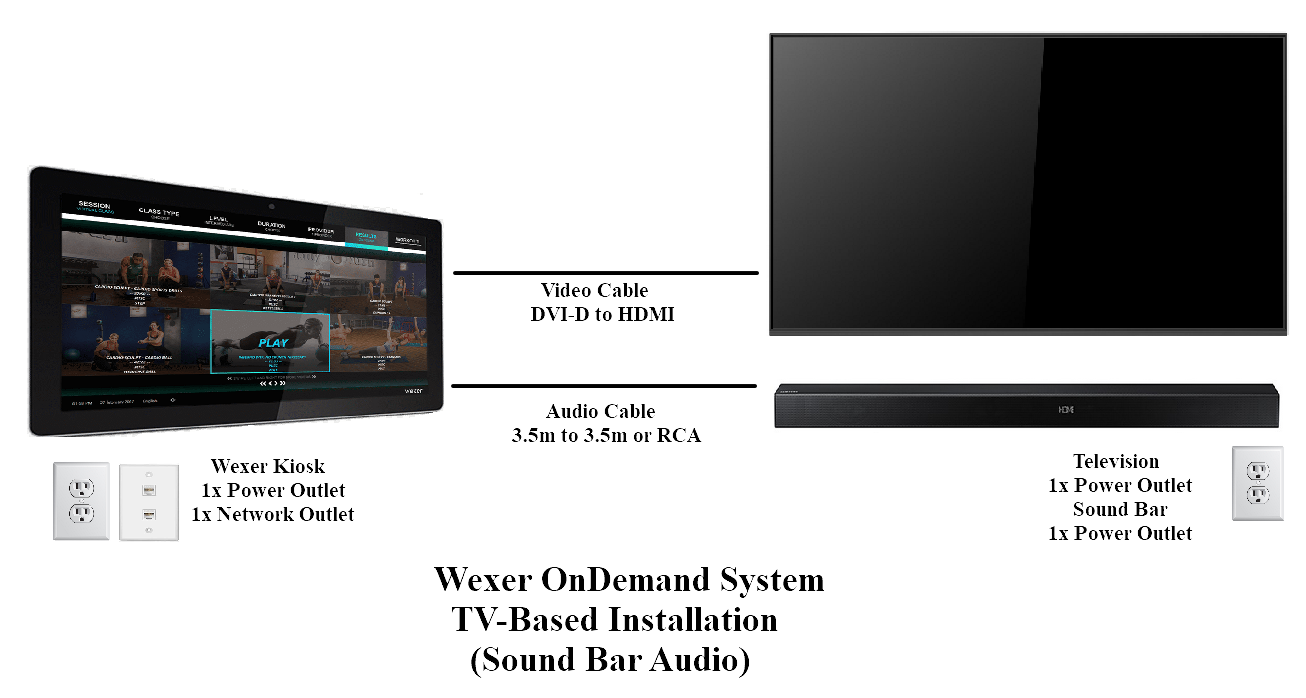

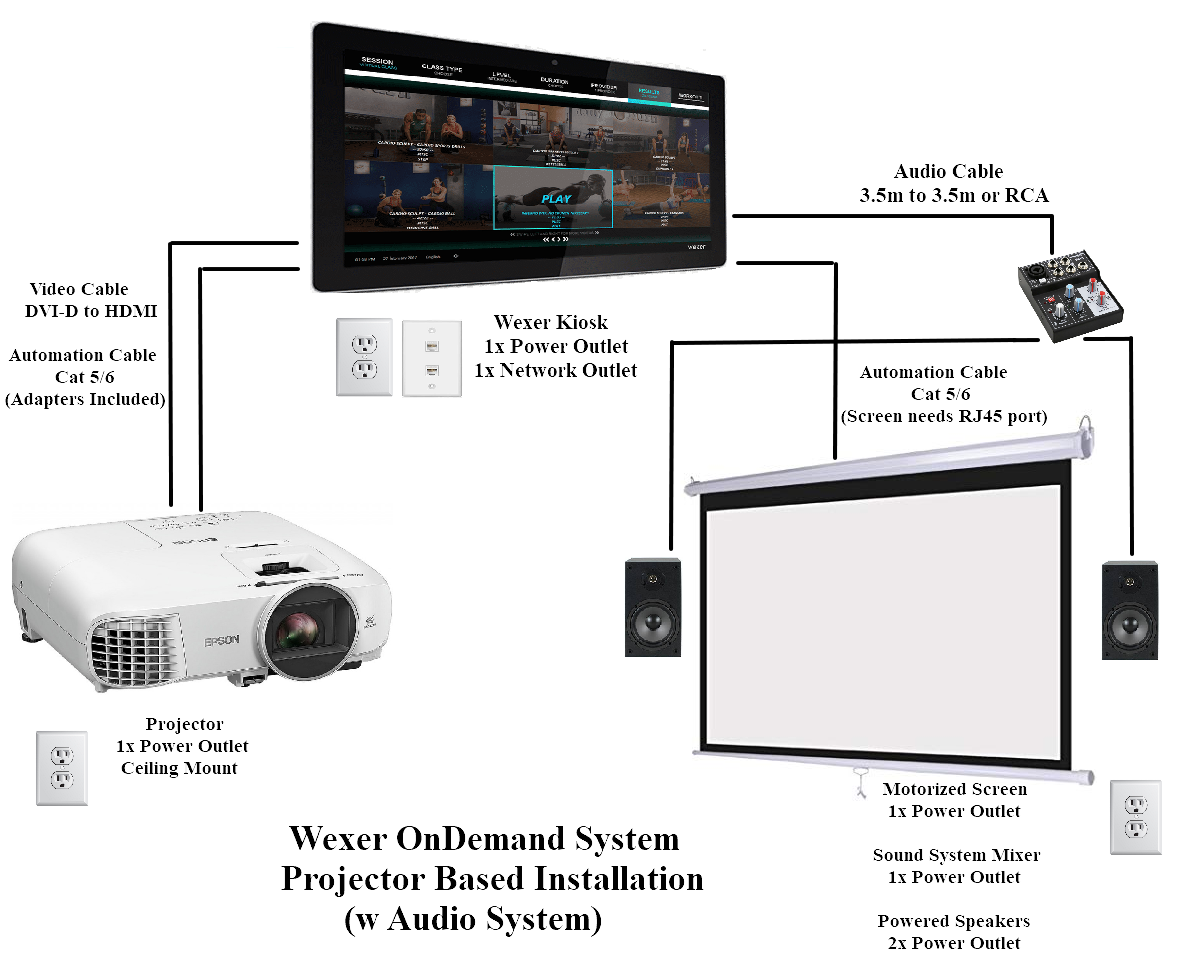

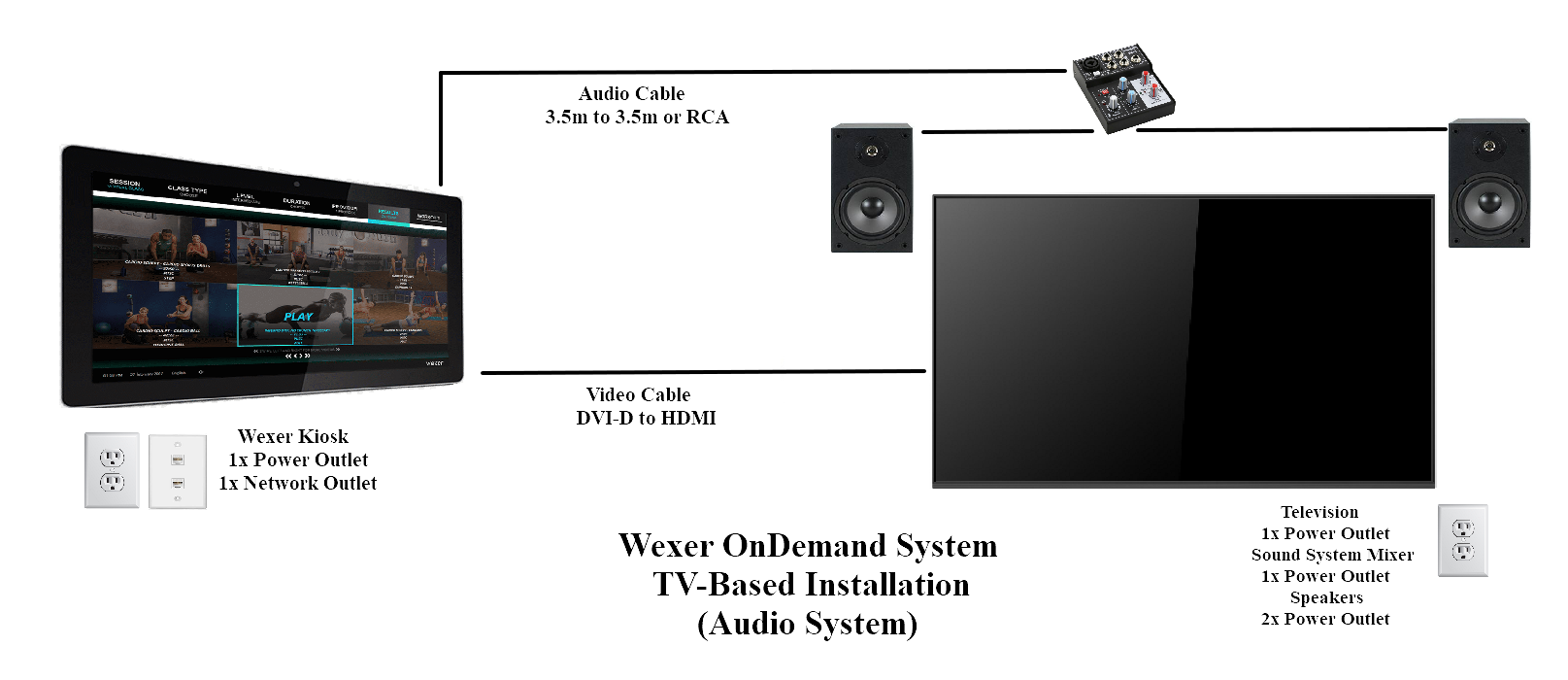

These guides are meant to provide a very simple, layman's view of the cabling of the Wexer OnDemand system, used with a variety of AV.  You can download the pictures using the links below.

Remember, when you purchase an OnDemand system, you receive the touchscreen kiosk, a wall mount, a power cable, and an adapter pack - no other AV or cabling is included.

For proper advice, please refer to our full installation guide, always hire a qualified installation technician, always purchase quality AV, and always raise a ticket with us if you have any questions!
