Now you have your virtual player, screen, wall mount and accessory kit follow this easy guide to install.
As with anything electrical we would recommend that an install or reboot should be performed by an experienced administrative user/electrician.
-

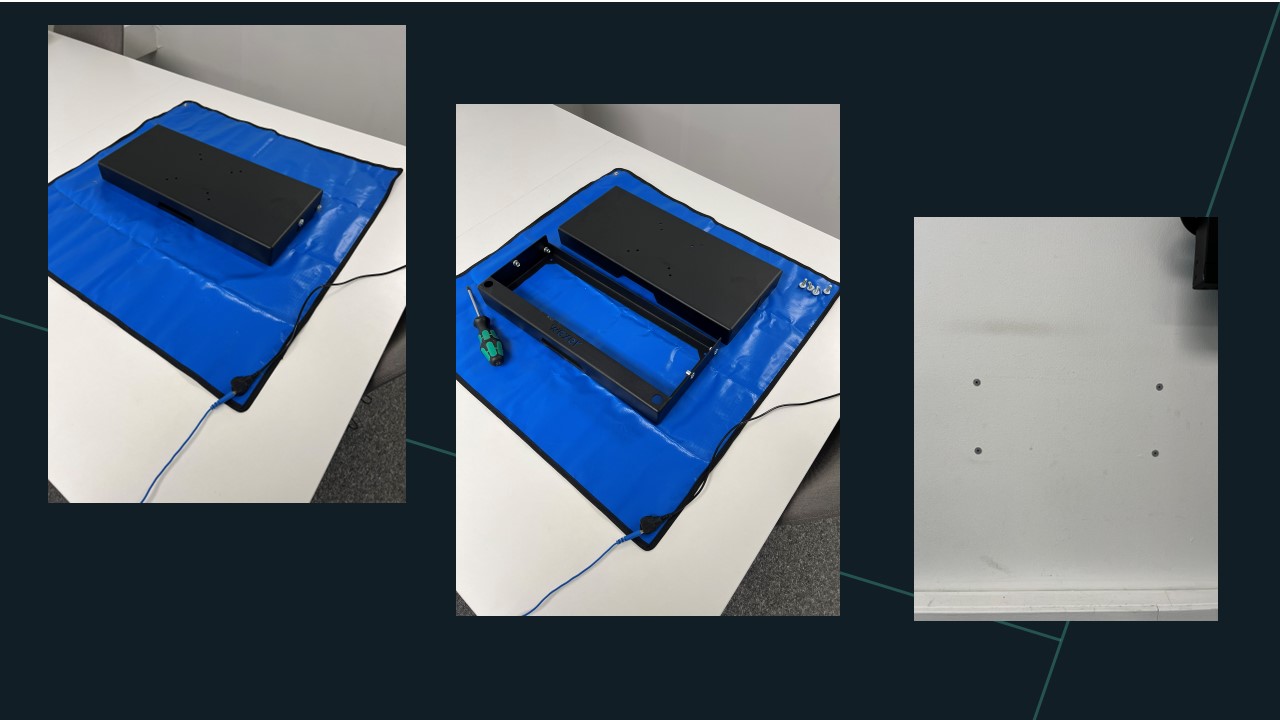

Disassemble wall mount's front plate from the back plate - image below.
- Ensure correct orientation of the back plate, with the lip as the lower part.
- Use inside cut-out of the back plate to mark height and placement of player and drill mounting holes in the wall you're placing the player on.
- Install wall mount's back plate on the wall.

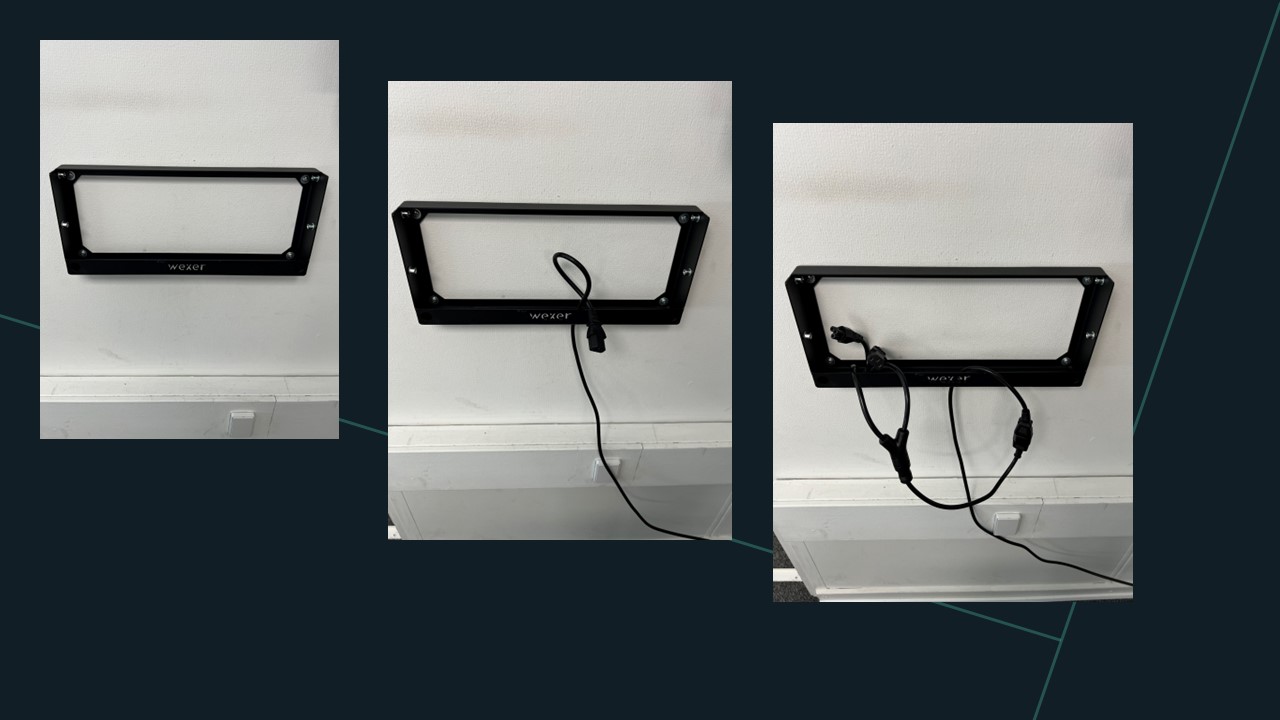

- Take in the power cable from a nearby outlet or, if available, use a power outlet behind the wall-mount for neatness.
- Add the Y splitter cable.

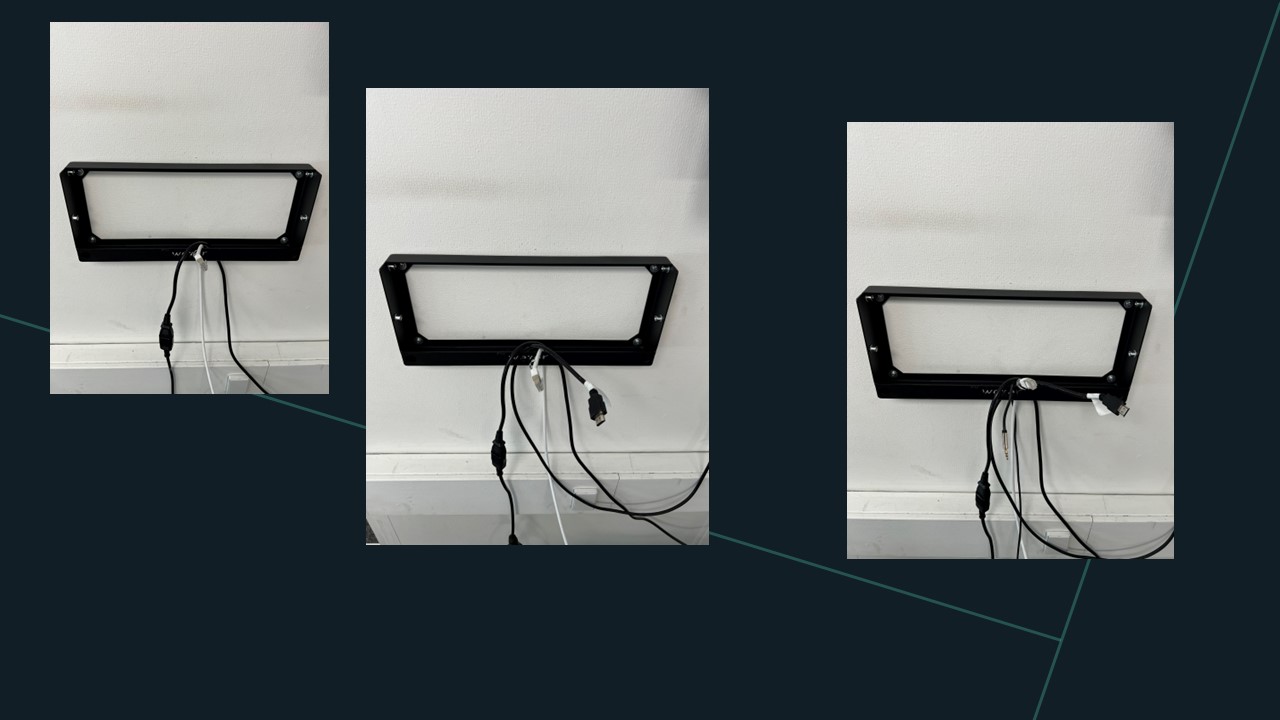

- Pull in an Ethernet cable into the wall-mount or use an ethernet cable from an outlet inside the wall-mount.
- Pull in an HDMI cable into the wall-mount or use an HDMI cable from an outlet inside the wall-mount.
- Pull in an Audio cable into the wall-mount or use an audio cable from an outlet inside the wall-mount.

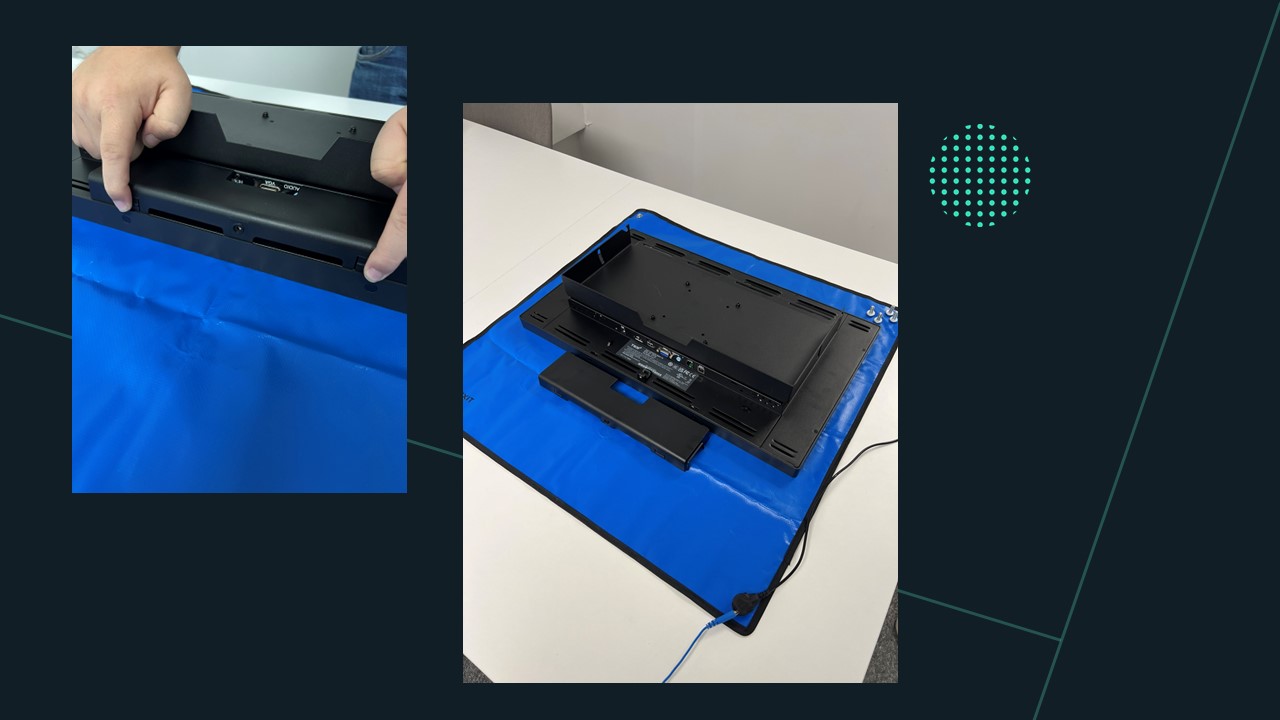

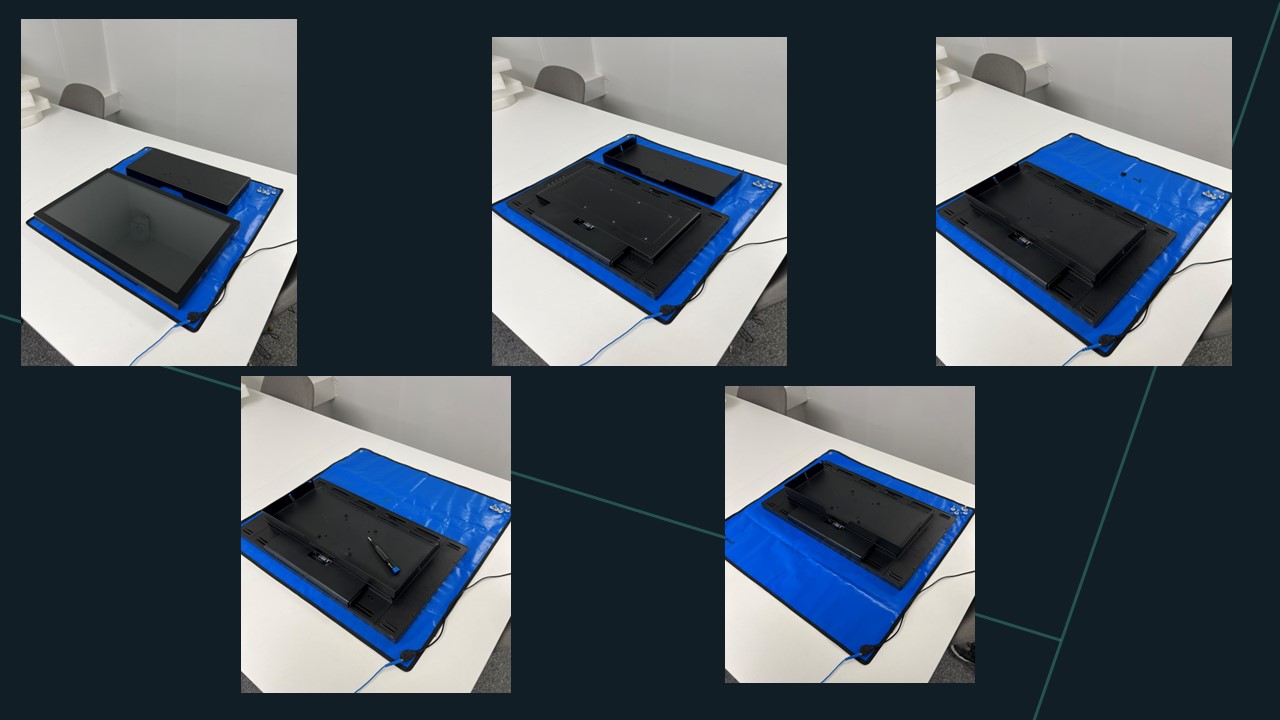

- Mount the screen to the VESA plate (outer part of the wall mount).

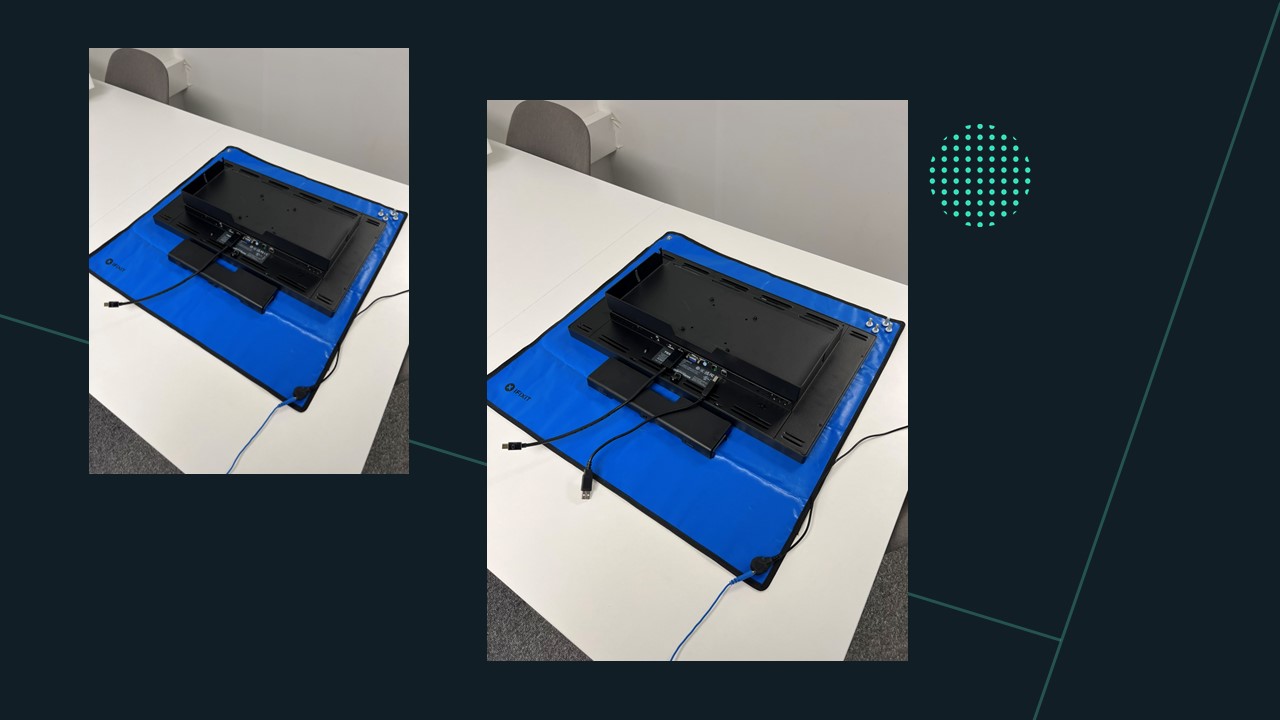

- Take off the input cover of the screen.
- Plug in the mDP to HDMI.
- Plug in the USB-A to USB-B.
-

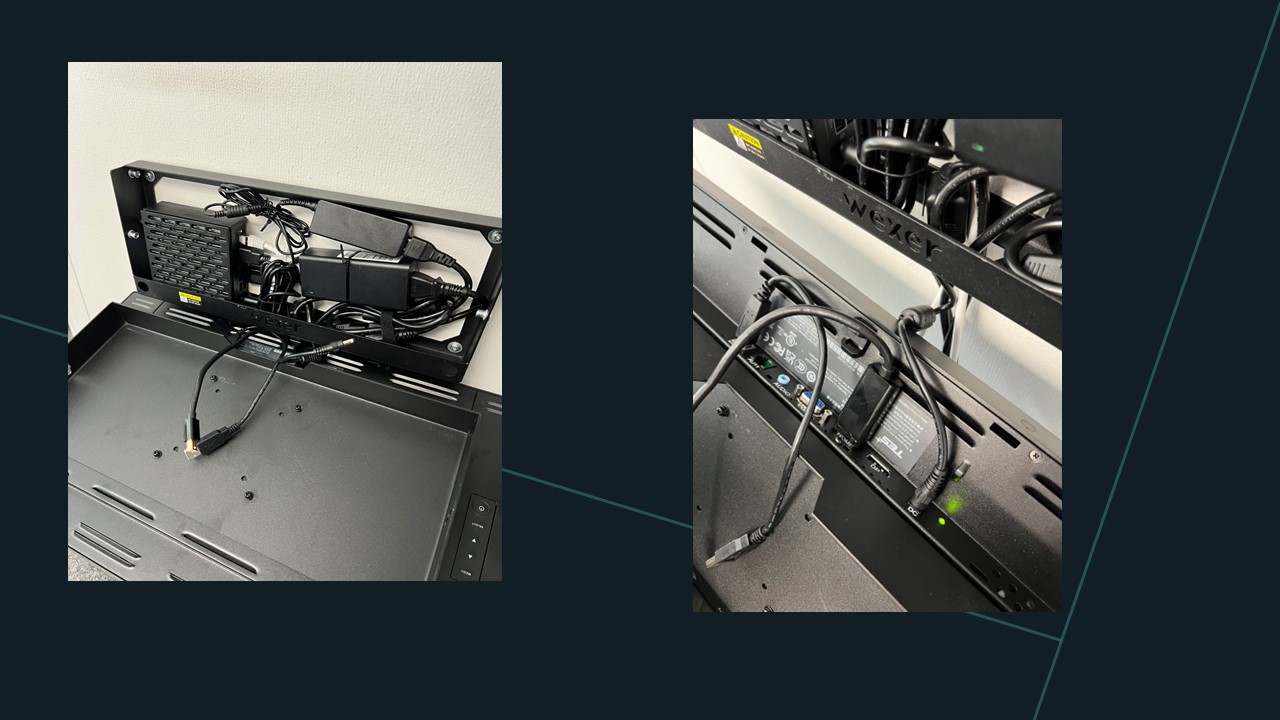

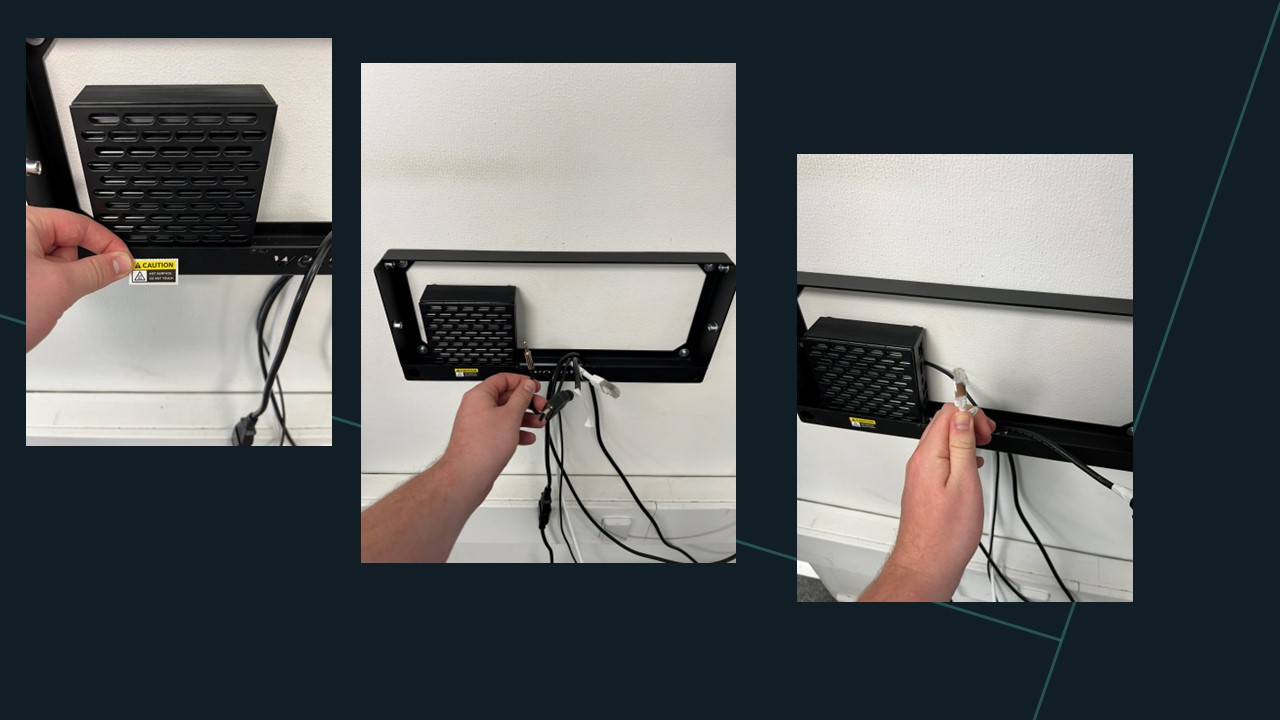

Place the Player in the wall-mount, adding the 'hot to touch' sticker on the wall mount.
- this will not be seen once the touch screen is in place.

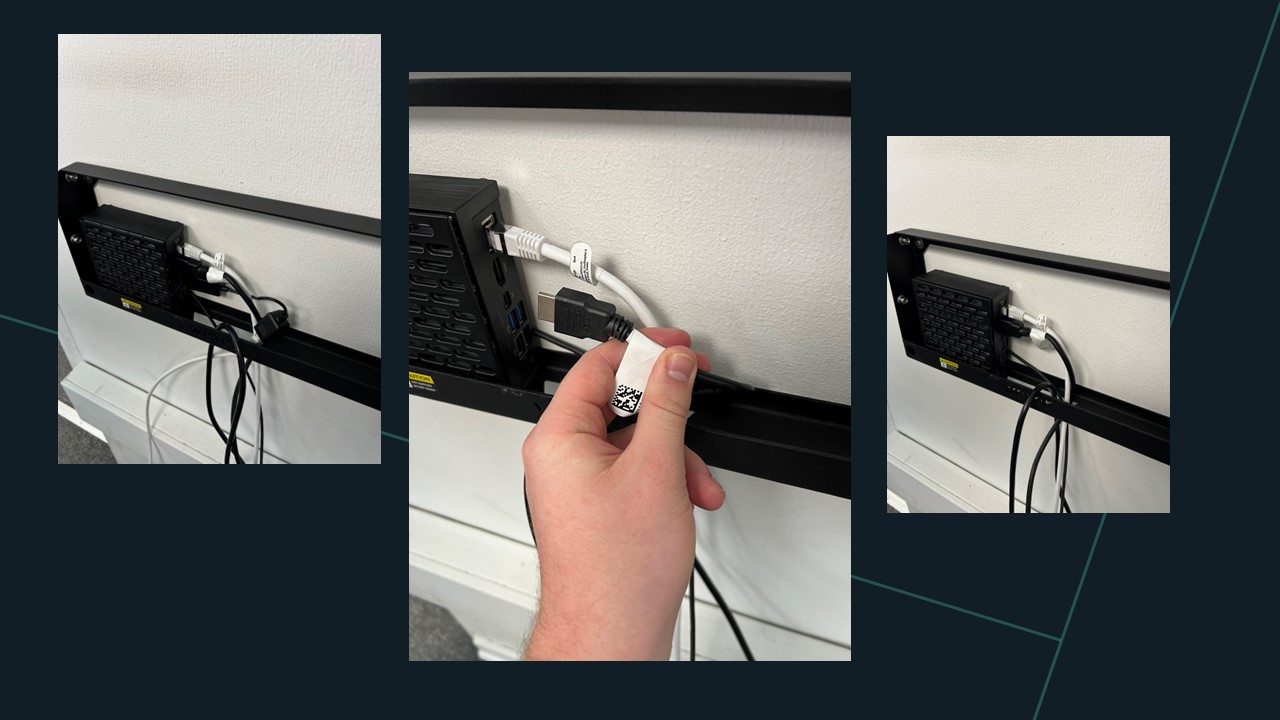

- Plug in the Audio cable.
- Plug in the ethernet cable.
-
Plug in the HDMI - Make sure the external screen is turned off at this point.
- IMPORTANT for the external screen (screen in the studio) to be switched off.
-
Plug in USB to Female Ethernet
- This is only needed if you are using projector screen automation.

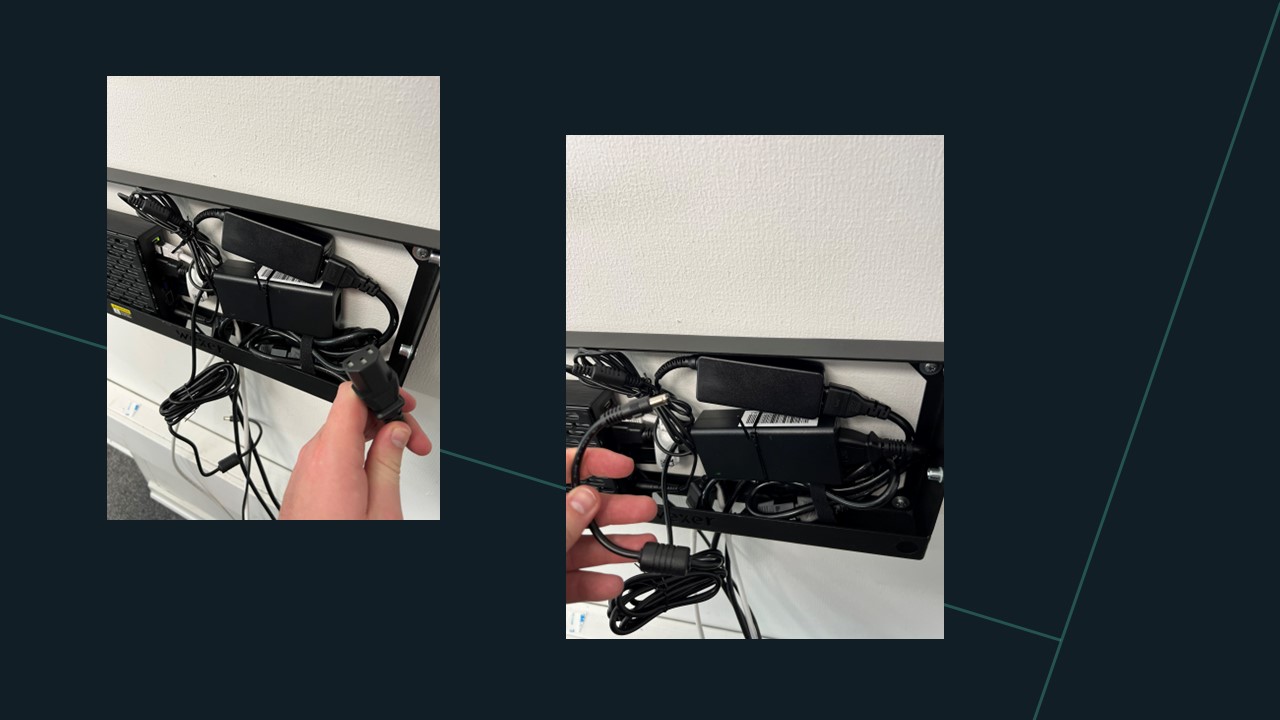

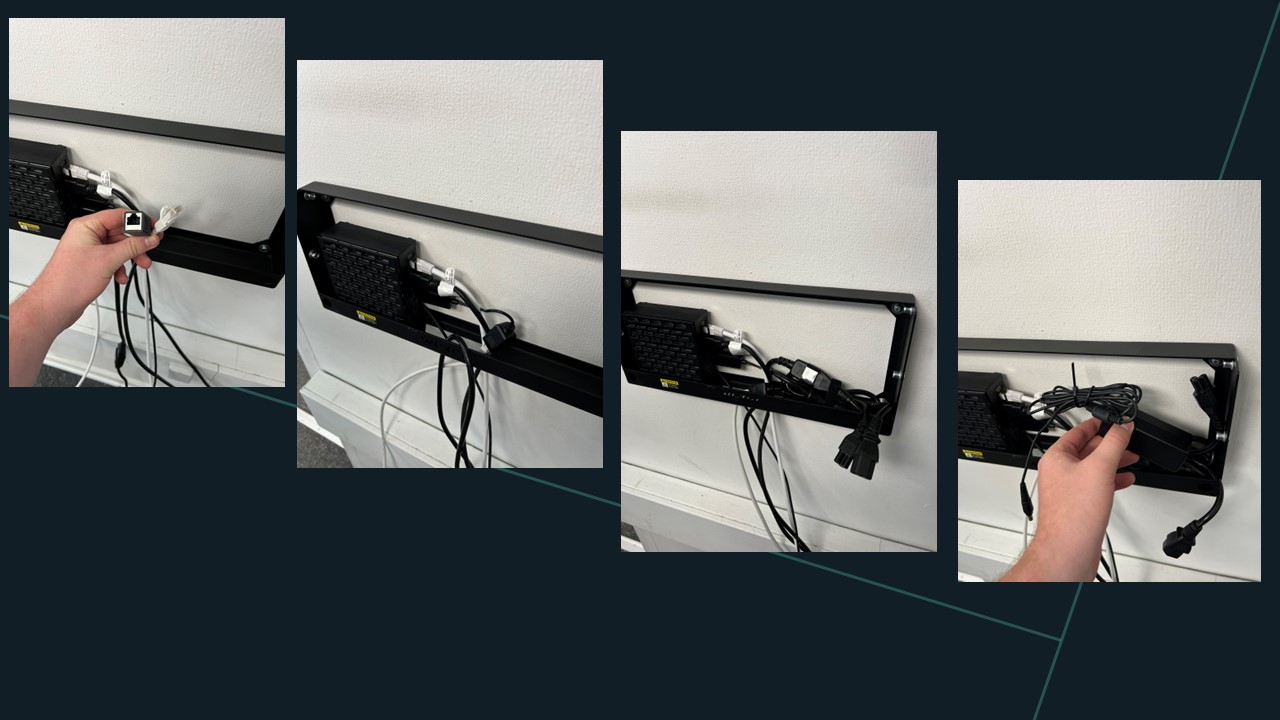

- Bundle up the Y Splitter using Velcro zip tie included in the accessory kit.
- Plug in the power brick for the player and put into the wall mount with all the cabling.

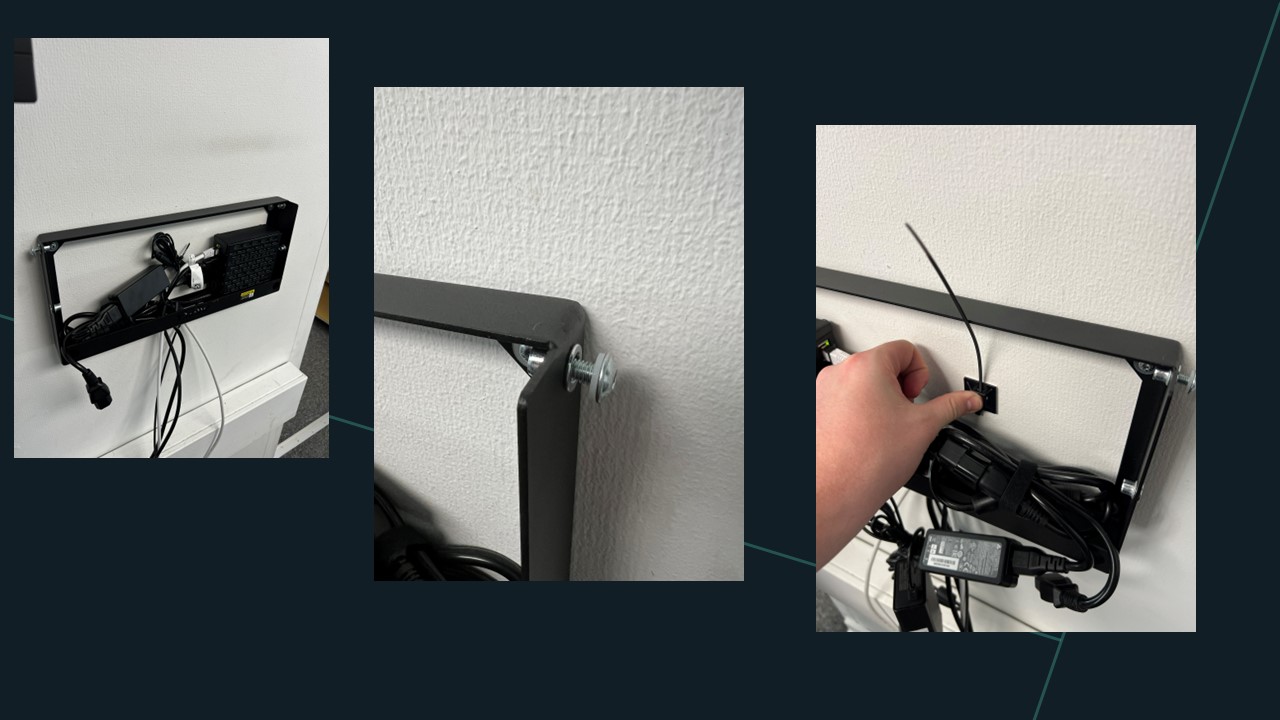

- Screw in the top two screws in the wall-mount.
- Place enclosed zip-tie anchor (ready to hold the screen power brick).
- Place the screen power brick with the zip tie used in the anchor.
- Loop the power plug down the cable hole in the wall-mount.
-

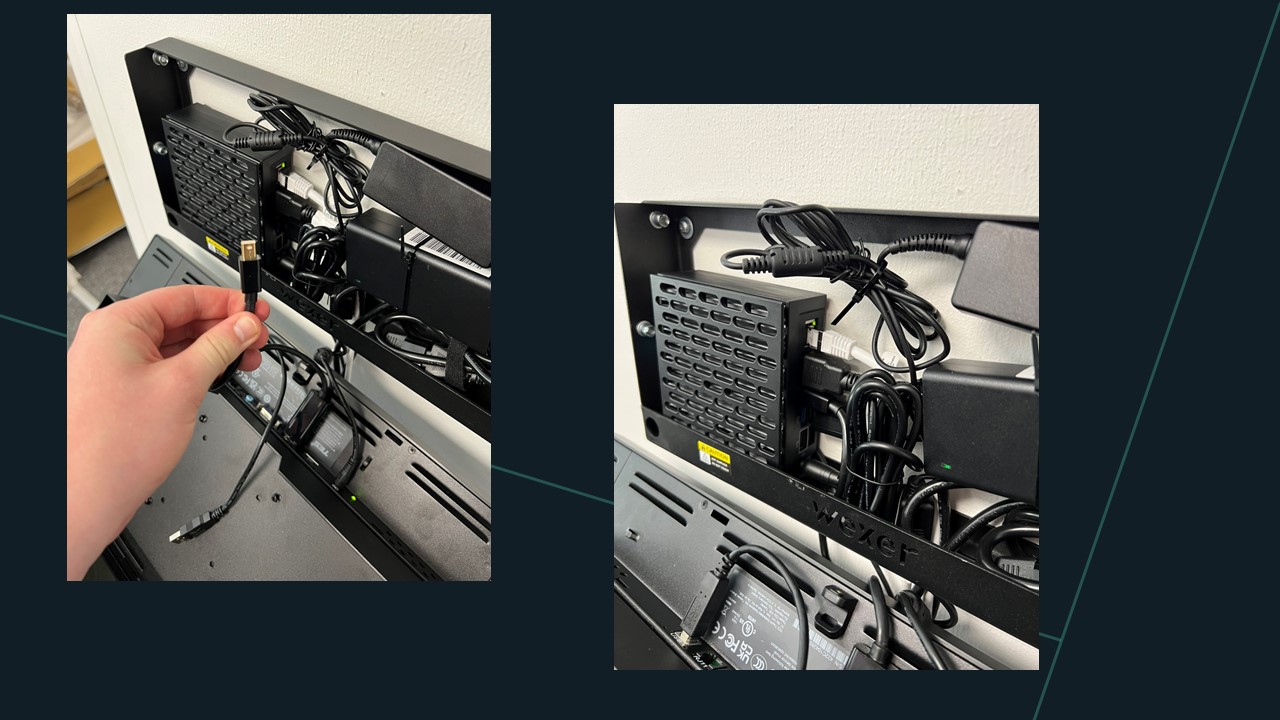

Hold the screen under the wall-mount.
- This part might need a second person to assist.
- Plug in the power to the screen.
- Plug in the mDP into the Player through the cable hole.
- Plug in the USB to the Player through the cable hole.
- Mount the screen to the wall-mount.

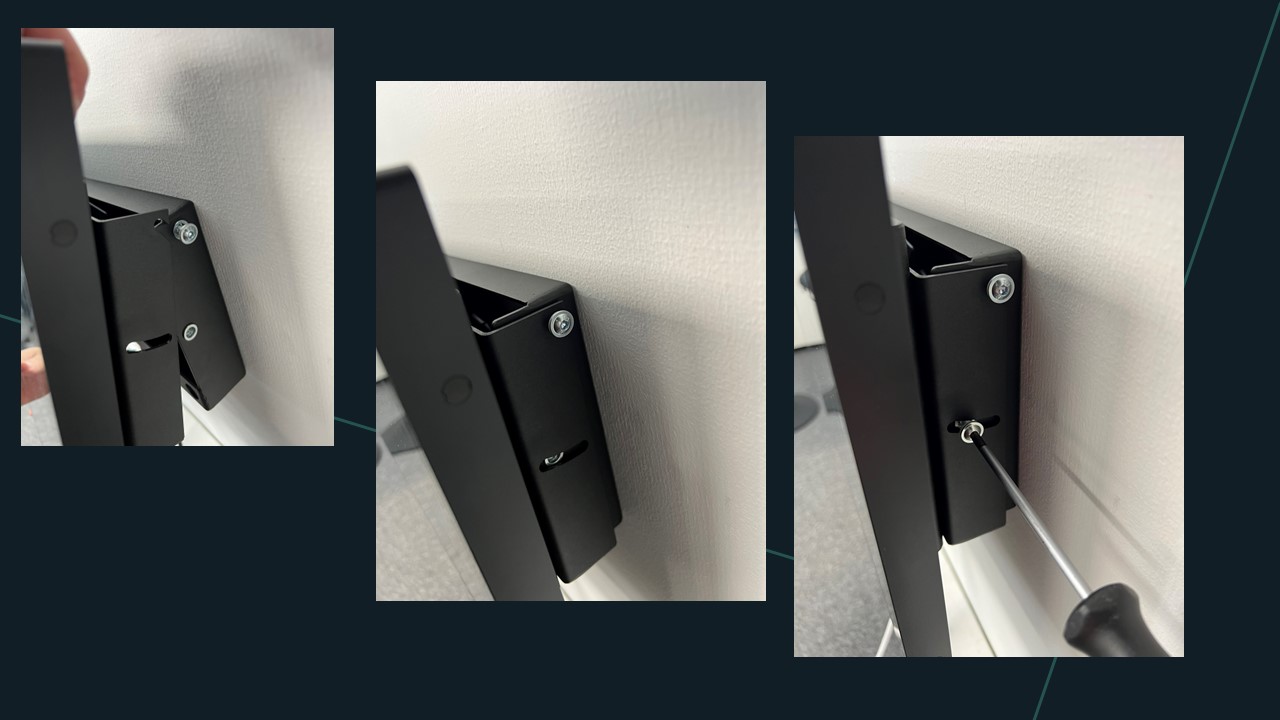

- Screw in the last two wall-mount screws at the desired screen tilt.

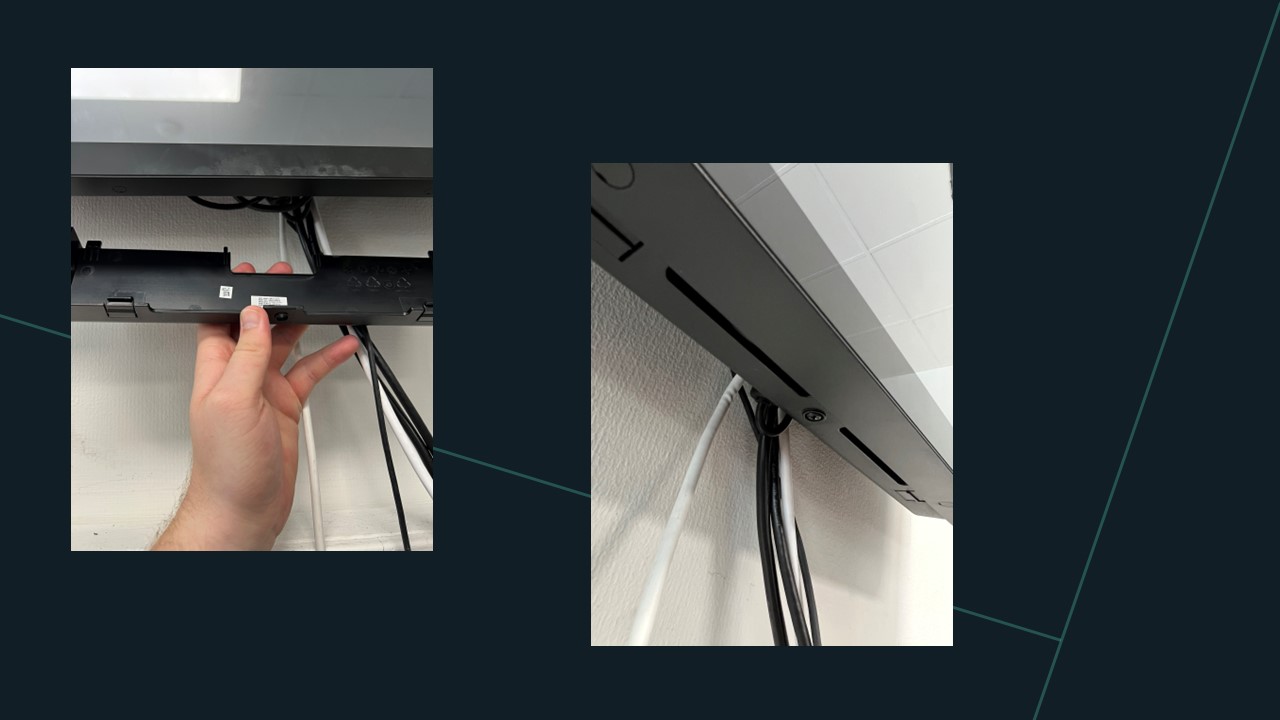

- Collect the screen cover and install it back under the screen.
-
Screw in the cover lock screw.

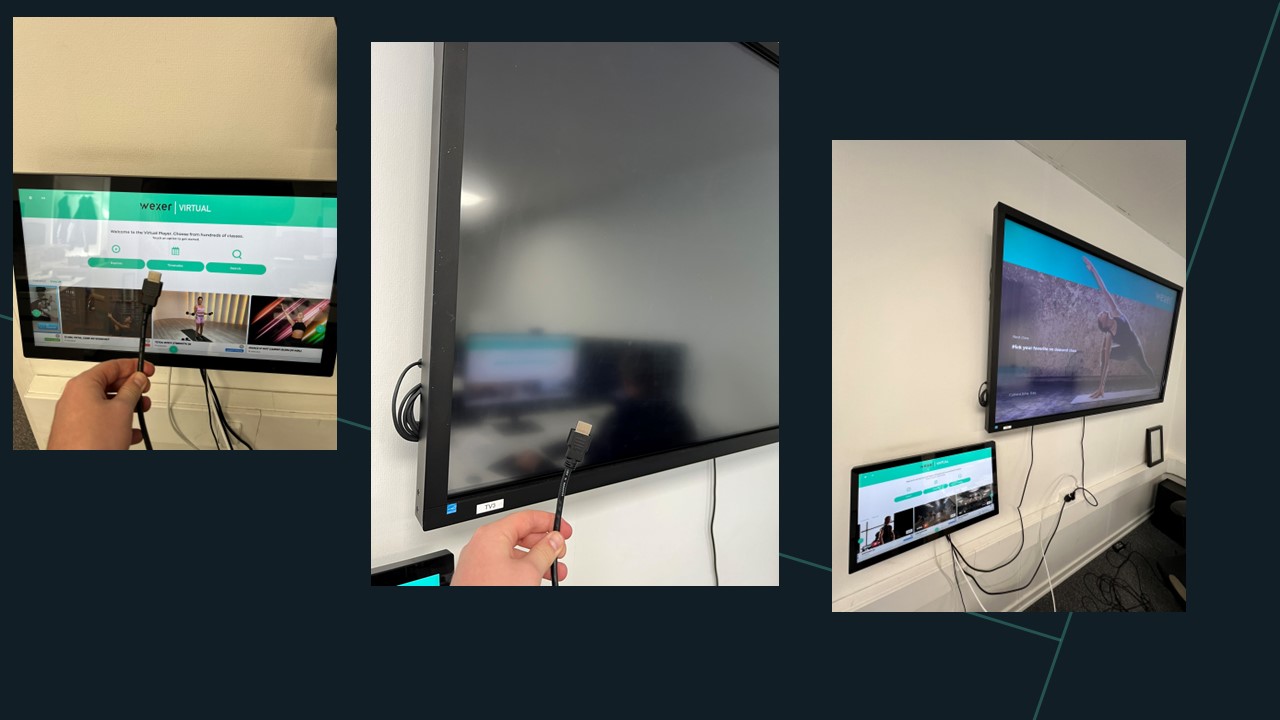

- Plug in the external TV or projector.
- The installation is now complete for a TV and unautomated projector.
- If Automation is needed with a projector there is a few more steps.

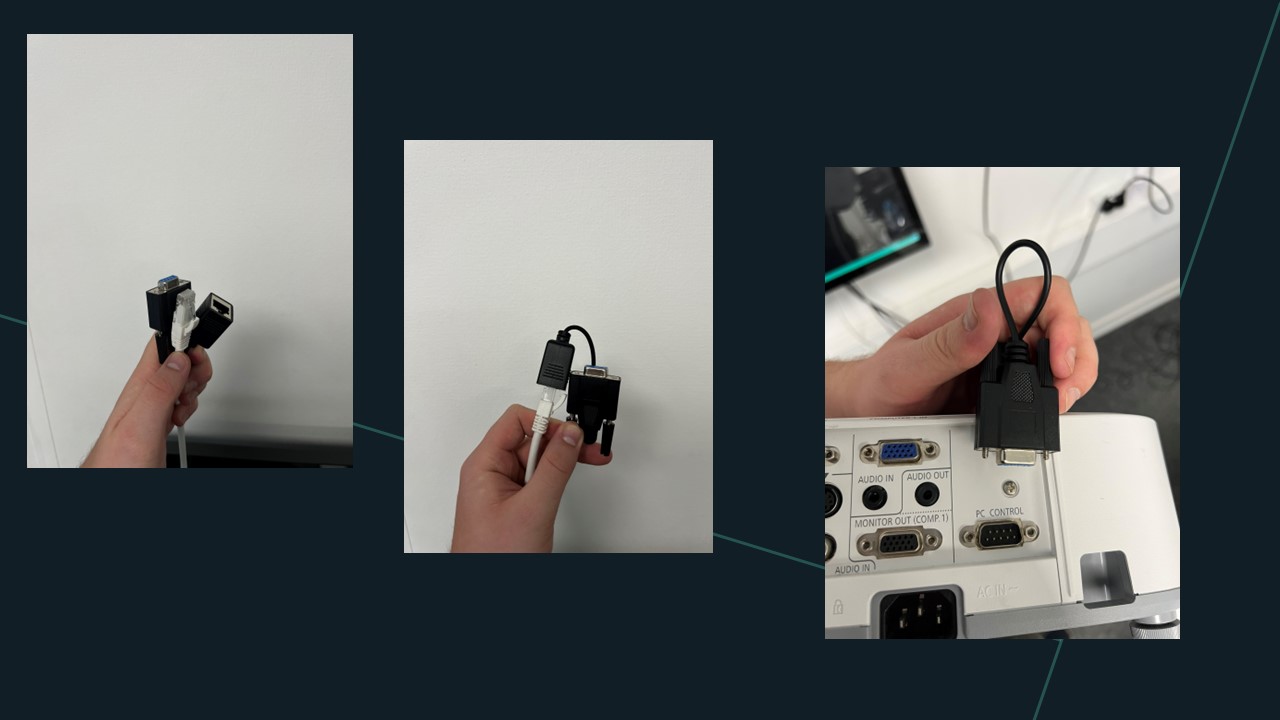

- Plug in the Female ethernet to RS-232 adapter to the automation ethernet cable.
- Plug in the RS-232 to the Automation port on your projector.
-
Contact Wexer Support with your make and model of the projector.
-
The commands that needs to be send to your projector to turn it on and off.
-
Along with the BAUD rate.
- The installation is now complete for your projector.
Should you have any questions or quires please contact the tech team using the ticketing system vis this link ticket.wexer.com
