Below you have a full sheet of information needed before the install.
Planning the install

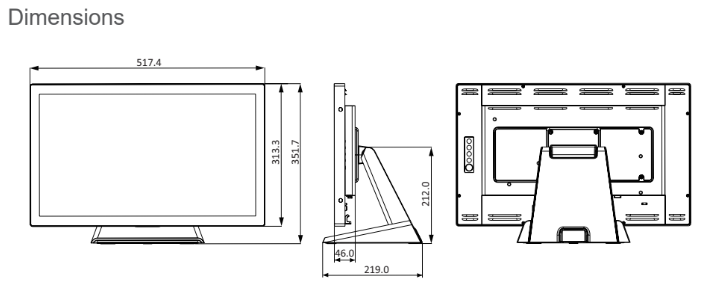

The Physical dimensions of the player
*Screen stand is not included as the system is made to be wall-mounted
When wall-mounted, the screen is 517,4mm wide and 313,3mm high.
The cable length and cables needed
HDMI Cable - Max length is 5 meters - If longer runs are needed, please use either a booster or an active HDMI cable
3.5mm Audio Jack - Max length is 5 meters - If longer runs are needed, please use properly shielded cables.
Ethernet cable - RJ45 Ethernet cable CAT5 is the minimum required - Max lenght is 100 meters.
Optional - Second Ethernet cable for Automation - RJ45 Ethernet cable CAT5 is the minimum required - Max lenght is 100 meters.
Network
The network will need to be configured to connect to our servers and allow access remotely, please see the below specs for exactly what is needed.
Port 443 (and 80 as fallback)
- *.wexer.com (wildcard)
- nfoo-server.com
- nfoo.com
- mywexer-prod.azurewebsites.net (temporary for v 28.0.0.2)
Port 443 (and 80 as fallback)
- api.wexer.com / *.wexer.com
- *.jwplayer.com
- *.jwpsrv.com
- *.teamviewer.com
- *.ntp.org
- realtime.ably.io (fallback: x.ably-realtime.com WHERE x = [a - e])
- *.jwplayer.com
- *.jwpcdn.com
- *.jwplatform.com
- *.jwpltx.com
- *.jwpsrv.com
- TCP 80 (HTTP)
- TCP 443 (HTTPS)
- *.mux.com
- TCP 80 (HTTP)
- TCP 443 (HTTPS)
- TCP 1935 (RTMP/RTMPS)
- Port 5938
Please see a more detailed and explained article here: Advanced Network Settings
The install in short
The Wexer system consists of a mini PC, a WallMount, and a Touchscreen.
When preparing, please consider where to mount the system. We recommend installing the screen outside the Studio to attract clients to use the screen even when a class is ongoing inside the studio.
The installation is fairly simple.
Everything get's unboxed, then the wallmount is installed, Ethernet, Audio and HDMI is fed into the wallmount.
Then the screen is prepared by installing the front side of the wallmount to it.
Once the wallmount is mounted to the screen, miniDP and USB is connected to the screen.
The MiniPC is now placed inside the wallmount on the wall and the Ethernet and audio cables are plugged in.
The HDMI Cable can also be connected now (Make sure the TV/Projector is OFF at this stage)
Connect the Y-Splitter and connect the PC Power brick inside the Wallmount.
Now connect the screen power brick and loop the screen power cable through the cable hole.
Now connec the miniDP and USB from the screen to the PC and connect the Screen power plug to the screen
Lastly hang the screen on the wallmount and screw it in place, and put back the IO cover on the screen.
For more details and photos of the install, please see the support articles below.
